Radiation Protection 5.8mmpb X Ray Lead Glass In Ct Room Cathlab Room Special

Name: Radiation Protection 58mmpb X Ray Lead Glass In Ct Room Cathlab Room Special
Brand: Jovi
Price: 200 USD

Brand Name : Jovi

Model Number : 1-CF-15

Certification : CE

Place of Origin : China

MOQ : 5pcs

Price : usd200-usd2000/pc

Payment Terms : L/C, T/T

Supply Ability : 5000000pcs/year

Delivery Time : 5-8working days

Packaging Details : in customized wooden cases

Name : Radiation Protection CT Room Cathlab Room X Ray Lead Glass Special

Usage : CT Room, X ray room, Cathlab Room, DR Room

Type : Square, Circle Shape

Size : Standard size and customized size

Contact Now

Radiation Protection CT Room Cathlab Room X Ray Lead Glass Special

Quick Detail:

· Size 200* 300mm

· Customized Size accepted

· Thickness 8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm

· Lead equivalent 1.7/ 2.1/ 2.6/ 3.3/ 3.96/ 4.4/ 5.8/ 6.71mmpb

· CE Certificate

Description:

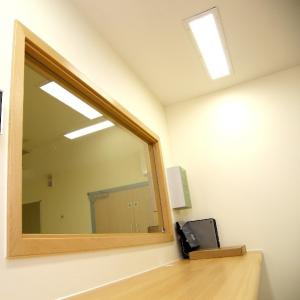

To provide viewing of the patient in the x - ray room while providing protection to the operator, lead glass

viewing windows can be furnished in the barrier.

Lead glass is mainly used for diagnostic, CT, ECT, PET, ct- pet and other machine rooms, as well as

observation Windows on the protective screen of protective doors.

Specification:

	8mm	10mm	12mm	15mm	18mm	20mm	25mm
	( 1.7mmpb)	( 2.1mmpb)	( 2.6mmpb)	( 3.3 mmpb)	( 3.96 mmpb)	( 4.4 mmpb)	( 6.71 mmpb)
200* 300	200* 300* 8	200* 300* 10	200* 300* 12	200* 300* 15	200* 300* 18	200* 300* 20	-
300* 400	300* 400* 8	300* 400* 10	300* 400* 12	300* 400* 15	300* 400* 18	300* 400* 20	-
400* 600	400* 600* 8	400* 600* 10	400* 600* 12	400* 600* 15	400* 600* 18	400* 600* 20	-
600* 800	600* 800* 8	600* 800* 10	600* 800* 12	600* 800* 15	600* 800* 18	600* 800* 20	-
600* 900	600* 900* 8	600* 900* 10	600* 900* 12	600* 900* 15	600* 900* 18	600* 900* 20	-
1000* 800	1000* 800* 8	1000* 800* 10	1000* 800* 12	1000* 800* 15	1000* 800* 18	1000* 800* 20	1000* 800* 25
1200* 800	1200* 800* 8	1200* 800* 10	1200* 800* 12	1200* 800* 15	1200* 800* 18	1200* 800* 20	1200* 800* 25
1200* 900	1200* 900* 8	1200* 900* 10	1200* 900* 12	1200* 900* 15	1200* 900* 18	1200* 900* 20	1200* 900* 25
1200* 1000	1200* 1000* 8	1200* 1000* 10	1200* 1000* 12	1200* 1000* 15	1200* 1000* 18	1200* 1000* 20	1200* 1000* 25
1200* 1200	-	1200* 1200* 10	1200* 1200* 12	1200* 1200* 15	1200* 1200* 18	1200* 1200* 20	1200* 1200* 25
1500* 900	-	1500* 900* 10	1500* 900* 12	1500* 900* 15	1500* 900* 18	1500* 900* 20	1500* 900* 25
1500* 1000	-	1500* 1000* 10	1500* 1000* 12	1500* 1000* 15	1500* 1000* 18	1500* 1000* 20	1500* 1000* 25
1500* 1200	-	1500* 1200* 10	1500* 1200* 12	1500* 1200* 15	1500* 1200* 18	1500* 1200* 20	1500* 1200* 25
1600* 1000	-	1600* 1000* 10	1600* 1000* 12	1600* 1000* 15	1600* 1000* 18	1600* 1000* 20	1600* 1000* 25
1600* 1200	-	1600* 1200* 10	1600* 1200* 12	1600* 1200* 15	1600* 1200* 18	1600* 1200* 20	1600* 1200* 25
1800* 1000	-	1800* 1000* 10	1800* 1000* 12	1800* 1000* 15	1800* 1000* 18	1800* 1000* 20	1800* 1000* 25
1800* 1200	-	1800* 1200* 10	1800* 1200* 12	1800* 1200* 15	1800* 1200* 18	1800* 1200* 20	1800* 1200* 25
2000* 1000	-	2000* 1000* 10	2000* 1000* 12	2000* 1000* 15	2000* 1000* 18	2000* 1000* 20	2000* 1000* 25
2000* 1200	-	2000* 1200* 10	2000* 1200* 12	2000* 1200* 15	2000* 1200* 18	2000* 1200* 20	2000* 1200* 25
2400* 1200	-	2400* 1200* 10	2400* 1200* 12	2400* 1200* 15	2400* 1200* 18	2400* 1200* 20	2400* 1200* 25

Lead glass can be installed in multiple layers so as to provide a lead equivalency to the lead in the wall in

which it is installed.

Notices:

1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.

2. When installation, the glass must be mismatched with the wall protection material to prevent radiation

leakage at the joint.

3. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base

and is not easy to be installed or stored in a sour or humid environment.

Radiation Protection 5.8mmpb X Ray Lead Glass In Ct Room Cathlab Room Special

FAQ:

Radiation Protection CT Room Cathlab Room X Ray Lead Glass Special

Q. Can I have a sample order for lead glass?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q. What about the lead time?

A: Usually 5-7 working days.

Q. Do you have any MOQ limit?

A: Low MOQ, 1pc is available.
